WiseScope모듈

WiseScope모듈

에스디옵틱스는 자체 개발한 초고속 가변 초점 디지털 렌즈 시스템(MALS™)을 이용하여 새로운 디지털 광학 적용분야를 개척해왔습니다.

WiseScope는 자체 개발 기술 (MALS™)를 활용한 3D 비전 검사용 카메라 모듈로, 현재까지 개발된 3D 검사기 중 가장 빠른 속도로 데이터를 처리하고 자체 개발한 조명 시스템과 함께 고객의 사용 목적 및 환경에 맞게설계한 특화 제품 공급도 가능합니다.

에스디옵틱스는 자체 개발한 초고속 가변 초점 디지털 렌즈 시스템(MALS™)을 이용하여새로운 디지털 광학 적용분야를 개척해왔습니다.

WiseScope는 자체 개발 기술 (MALS™)를 활용한 3D 비전 검사용 카메라 모듈로,현재까지 개발된 3D 검사기 중 가장 빠른속도로 데이터를 처리하고 자체 개발한 조명 시스템과 함께 고객의 사용 목적 및 환경에 맞게설계한 특화 제품 공급도 가능합니다.

Highlights

Applications

  • 3D Vision Scope Module

  • Precision Measuring Equipment

  • 3D Line Scan Module

  • Real Time Align Camera Module

  • CCTV or IP Camera

  • Auto Vision Inspection

  • 3D Depth Mobile Camera

  • Long Focus Mobile Camera

  • Medical Endoscope

  • Industrial Endoscope

Product Configuration

  • WiseScope 모듈 구성요소

    - MicroScope Main Body

    - 최적의 조명 구성 적용(동축, 링, 평행광, 돔조명 등)

    - MALS™ & MALS™ 컨트롤러

    - Infinity Corrected Objective Lens

    - Controlling Driver Software

    - 카메라

    - PC(옵션)

Vari Focal Movie

Vari Focal Industrial Camera

Multi-focus & DepthLock Sample Movie

WiseScope Specification

Model 0.9x ST
(Telecentric)		 0.9x HR
(Telecentric)		 1.0x ST
(Telecentric)		 1.0x HR
(Telecentric)		 1.3x ST
(Non-tele.)		 1.3x HR
(Non-tele.)
Magnification0.9x0.9x1.0x1.0x1.3x1.3x
Image format(max.)Ø16mmØ16mmØ44mmØ44mmØ16mmØ16mm
Camera MountC-mountC-mountF-mountF-mountC-mountC-mount
Telecentricity typical (max)< 0.31 degree< 0.31 degree< 0.14 degree< 0.14 degreeNon-tele.Non-tele.
WD70mm70mm48.8mm48.8mm46.3mm46.3mm
Depth Resolution36.65um21.33um28.3um21.9um30um19um
Depth Scan Range11.69mm6.81mm9.0mm7.0mm9.5mm6.2mm
DoF327.2um163.4um247um122um276.4um141.8um
NA0.0410.0580.0470.0670.0450.062
Model 1.5x ST
(Telecentric)		 1.5x HR
(Telecentric)		 2.0x ST
(Telecentric)		 2.0x HR
(Telecentric)		 2.3x ST
(Telecentric)		 2.3x HR
(Telecentric)
Magnification1.5x1.5x2.0x2.0x2.3x2.3x
Image format(max.)Ø18mmØ18mmØ45.7mmØ45.7mmØ32.58mmØ32.58mm
Camera MountC-mountC-mountM58M58F-mountF-mount
Telecentricity typical (max)< 0.32 degree< 0.32 degree< 0.42 degree< 0.42 degree< 0.34 degree< 0.34 degree
WD93.5mm93.5mm75mm75mm67.6mm67.6mm
Depth Resolution16.4um14.3um10um8um13.9um12.1um
Depth Scan Range5.23mm4.55mm3.5mm2.5mm4.44mm3.86mm
DoF122.6um68.0um158um76um115.6um55.0um
NA0.0670.0900.0590.0850.0690.1
Model 2.5x ST
(Telecentric)		 2.5x HR
(Telecentric)		 5.0x ST
(Telecentric)		 5.0x HR
(Telecentric)		 5.0x ST
(Telecentric)		 5.0x HR
(Telecentric)
Magnification2.5x2.5x5.0x5.0x5.0x5.0x
Image format(max.)Ø64mmØ64mmØ60mmØ60mmØ60mmØ60mm
Camera MountM58M58M58, M72M58, M72M58, M72M58, M72
Telecentricity typical (max)< 0.51 degree< 0.51 degree< 0.1 degree< 0.1 degree< 0.1 degree< 0.1 degree
WD70mm70mm23.2mm23.2mm23.2mm23.2mm
Depth Resolution10um8um8.1um3.4um8.1um3.4um
Depth Scan Range3.2mm2.5mm2.6mm1.07mm2.6mm1.07mm
DoF158um76um69.4um32.6um69.4um32.6um
NA0.0590.0850.0910.130.0910.13
Notes - MALS™ Controller Included
- Controller Interface: RS232C(Standard)
- Custom specification available
Model WiseScope Vx HR Product
Magnification 2x 5x 7.5x 10x 20x 50x
Image format(max.)2/3 inch2/3 inch2/3 inch2/3 inch2/3 inch2/3 inch
Camera MountC-mountC-mountC-mountC-mountC-mountC-mount
WD34mm34mm35mm34mm20mm13mm
Depth Resolution35.6um5.66um2.52um1.40um0.344um0.052um
Depth Scan Range11.14mm1.75mm0.81mm0.432mm0.11mm0.017mm
DoF361.6um55.00um24.44um13.76um6.54um3.62um
NA0.0390.100.150.200.290.39
Reference Objective
(Mitutotyo LWD)		378-801-6378-802-6378-807-3378-803-3378-804-3378-805-3
Model WiseScope Vx UR Product
Magnification 2x 5x 7.5x 10x 20x 50x
Image format(max.)2/3 inch2/3 inch2/3 inch2/3 inch2/3 inch2/3 inch
Camera MountC-mountC-mountC-mountC-mountC-mountC-mount
WD34mm34mm35mm34mm20mm13mm
Depth Resolution30.9um4.92um2.20um1.21um0.295um0.045um
Depth Scan Range9.87mm1.574mm0.70mm0.387mm0.094mm0.014mm
DoF181.6um28.06um12.48um7.02um3.12um1.82um
NA0.0550.140.210.280.420.55
Reference Objective
(Mitutotyo LWD)		378-801-6378-802-6378-807-3378-803-3378-804-3378-805-3
Notes - Specification based on Mitutotyo Objectives (M Plan Apo LWD)
- MALS™ Controller Included
- Controller Interface: RS232C(Standard)
- Custom specification available
Model WiseScope Vx 200 UR Product
Magnification 2x 5x 7.5x 10x 20x 50x
Image format(max.)1.1 inch1.1 inch1.1 inch1.1 inch1.1 inch1.1 inch
Camera MountC-mountC-mountC-mountC-mountC-mountC-mount
WD34mm34mm35mm34mm20mm13mm
Depth Resolution25um4um1.78um1.00um0.25um0.04um
Depth Scan Range8.00mm1.28mm0.57mm0.32mm0.08mm0.0128mm
DoF181.8um28.06um12.48um7.02um3.12um1.82um
NA0.0550.140.210.280.420.55
Reference Objective
(Mitutotyo LWD)		378-801-6378-802-6378-807-3378-803-3378-804-3378-805-3
Notes - Specification based on Mitutotyo Objectives (M Plan Apo LWD)
- MALS™ Controller Included
- Controller Interface: RS232C(Standard)
- Custom specification available

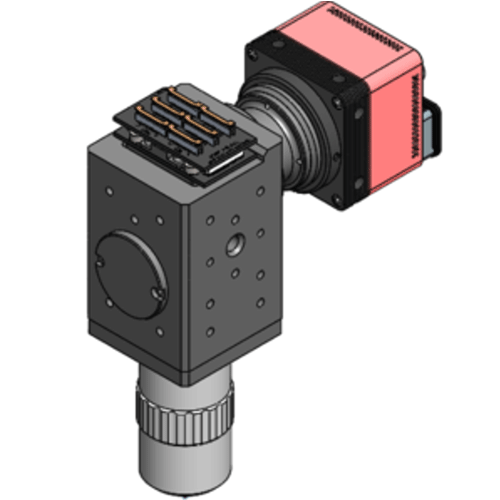

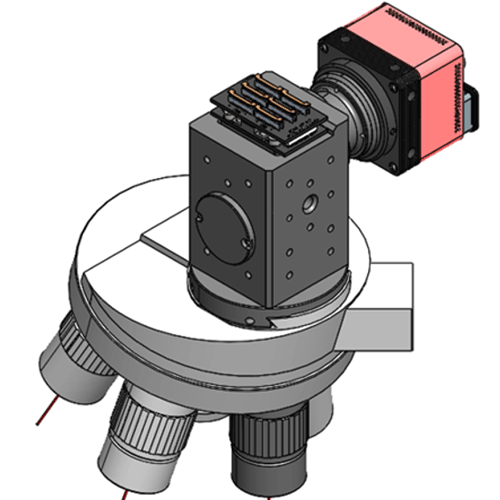

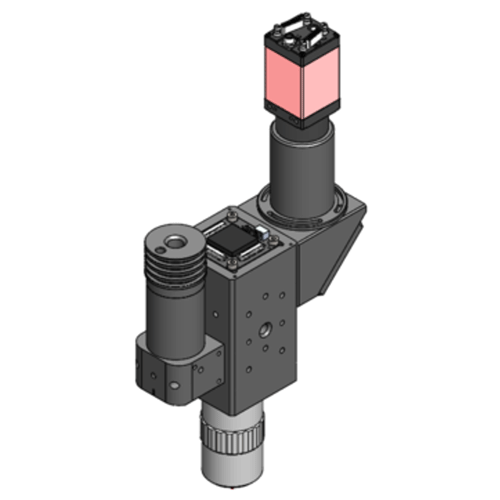

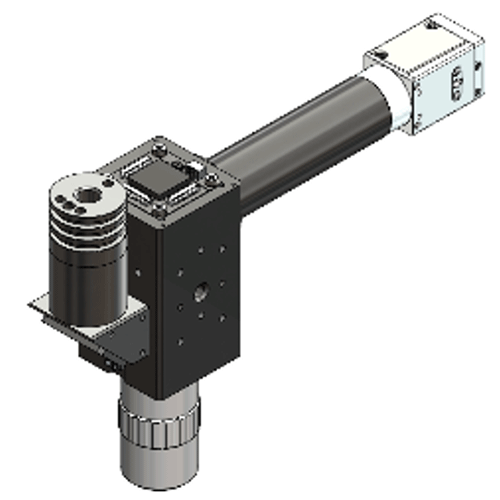

WiseScope Module Configuration

[ Ex. WiseScope 0.9x ST type B ]

  • Basic Module

  • with Camera

  • with Coaxial Illumination

  • with Illumination & Camera
