WiseScope Module

WiseScope Module

WiseScope 采用了 SD Optics 自主研发制造的超高速可变焦MEMS技术(MALS ™),主要功能为超快速运行,在固定光学系统中可扩大景深,而且也能够实现3D视觉检测等。

在视觉外观检测设备的应用中,我们可以结合不同照明系统制定针对性视觉检测模式,为客户提供最佳视觉检测解决方案。

目前,WiseScope 主要应用于手机镜头外观检测设备,非接触式尺寸量测设备,医疗以及工业用内窥镜等领域。

WiseScope 采用了 SD Optics 自主研发制造的超高速可变焦MEMS技术(MALS ™),主要功能为超快速运行,在固定光学系统中可扩大景深,而且也能够实现3D视觉检测等。

在视觉外观检测设备的应用中,我们可以结合不同照明系统制定针对性视觉检测模式,为客户提供最佳视觉检测解决方案。

目前,WiseScope 主要应用于手机镜头外观检测设备,非接触式尺寸量测设备,医疗以及工业用内窥镜等领域。

Highlights

Applications

  • 3D Vision Scope Module

  • Precision Measuring Equipment

  • 3D Line Scan Module

  • Real Time Align Camera Module

  • CCTV or IP Camera

  • Auto Vision Inspection

  • 3D Depth Mobile Camera

  • Long Focus Mobile Camera

  • Medical Endoscope

  • Industrial Endoscope

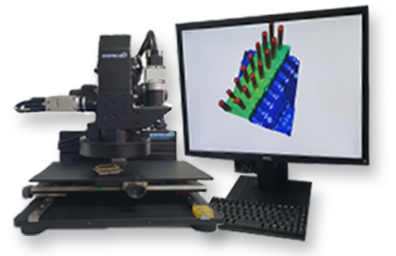

Product Configuration

  • WiseScope Module 结构

    - MicroScope Main Body

    - 结合最佳照明组合 同轴,环形,平行光,拱形照明等

    - MALS™ & MALS™ controller

    - Infinity Corrected Objective Lens

    - Controlling Driver Software

    - Camera

    - PC(Option)

Vari Focal Movie

Vari Focal Industrial Camera

Multi-focus & DepthLock Sample Movie

WiseScope Specification

Model W/S 1.3X (ST) W/S 1.3X (HR) W/S 1.0X (ST) W/S 0.9X_A(ST) W/S 0.9X_A(HR) W/S 0.9X_B(ST) W/S 0.9X_B(HR)
Magnification 1.3X 1.3X 1.0X 0.9X 0.9X 0.9X 0.9X
Image Format(MAX) 1 inch 1 inch 1/1.8 inch 1 inch
NA 0.045 0.062 0.038 0.046 0.064 0.042 0.058
FOV 8.63mmX8.63mm 8.63mmX8.63mm 7.2mmX5.4mm 12.4mmX12.4mm
Scanning Depth Range 9.5mm 6.4mm 12.2mm 9.1mm 6.0mm 9.1mm 6.0mm
Depth Resolution 30μm 20μm 38.2μm 28.0μm 19μm 28.0μm 19μm
Working Distance 47.2mm 47.2mm 108.7mm 71.5mm 71.5mm 70.0mm 70.0mm
Mount C-Mount C-Mount C-Mount C-Mount C-Mount C-Mount C-Mount
Dimensions(Basic Module) 73.3X50.0X102.2mm 73.3X50.0X102.2mm 65.3X42.0X105.4mm 78.6X44.0X103.9mm 78.6X44.0X103.9mm 57.8X45.0X130.2mm 57.8X45.0X130.2mm
3D(with Camera)
Model Wisescope 35mm (HR) Wisescope 35mm (UR) Wisescope 2.3X (HR) Wisescope 2.3X (UR) Wisescope 0.4X Wisescope 2.0X (UR) Wisescope 2.5X (UR)
Magnification 1X 1X 2.3X 2.3X 0.4X 2.0X 2.5X
Image Format(MAX) 23.0mmX23.0mm 23.0mmX23.0mm 29.9mmX22.4mm 36.4mmX27.6mm 53.35mmX40.01mm
NA 0.047 0.067 0.069 0.1 0.02 0.085 0.085
FOV 23.0mmX23.0mm 23.0mmX23.0mm 10.0mmX10.0mm 10.0mmX10.0mm 74.75mmX56mm 18.2mmX13.8mm 21.3mmX16.0mm
Scanning Depth Range 9.0mm 7.0mm 4.9mm 3.9mm TBD 2.5mm TBD
Depth Resolution 28.3μm 21.9μm 15.5μm 12.4μm TBD 8.0μm TBD
Working Distance 48.8mm 48.8mm 67.6mm 67.6mm 213mm 76.3mm 71.5mm
Mount F-Mount F-Mount F-Mount F-Mount M58 M58 M58
Dimensions(Basic Module) 152.3X80.0X110.0mm 152.3X80.0X110.0mm 82.2X58.0X112.9mm 82.2X58.0X112.9mm 107.7X60.6X173.7mm 130.7X75.0X147.5mm 164.7X76.0X148.0
3D(with Camera)
Model WiseScope Vx UR
Magnification 50X 20X 10X 7.5X 5X 2X 3D(with Camera)
Image Format(MAX) 2/3 inch (Sensor Size : 9.5mm x 6.05mm)
NA 0.55 0.42 0.28 0.21 0.14 0.055
FOV 0.19mmX0.121mm 0.475mmX0.3025mm 0.95mmX0.605mm 1.267mmX0.807mm 1.9mmX1.21mm 4.75mmX3.025mm
Scanning Depth Range 15.2μm 95.5μm 390μm 698μm 1.57mm 9.93mm
Depth Resolution 0.047μm 0.3μm 1.23μm 2.2μm 4.98μm 31.2μm
Working Distance 13mm 20mm 34mm 34mm 34mm 34mm
Mount C-Mount C-Mount C-Mount C-Mount C-Mount C-Mount
Dimensions(Basic Module) 157.9X50.0X175.6mm 157.9X50.0X168.6mm 157.9X50.0X155.1mm 157.9X50.0X153.6mm 157.9X50.0X154.6mm 157.9X50.0X154.6mm

产品示例 (包括照明)

[ Ex. WiseScope 0.9x ST type B ]
  • Basic Module

  • with Camera

  • with Coaxial Illumination

  • with Illumination & Camera
